On drilling properly, depends the success of the injection. We recommend our article on correct drilling if you are not already familiar with it.

Below the calculator, you will find a more detailed description of the columns with explanation and drawings.

By how much to deepen the hole from the intersection of the scratch to the selection [%]

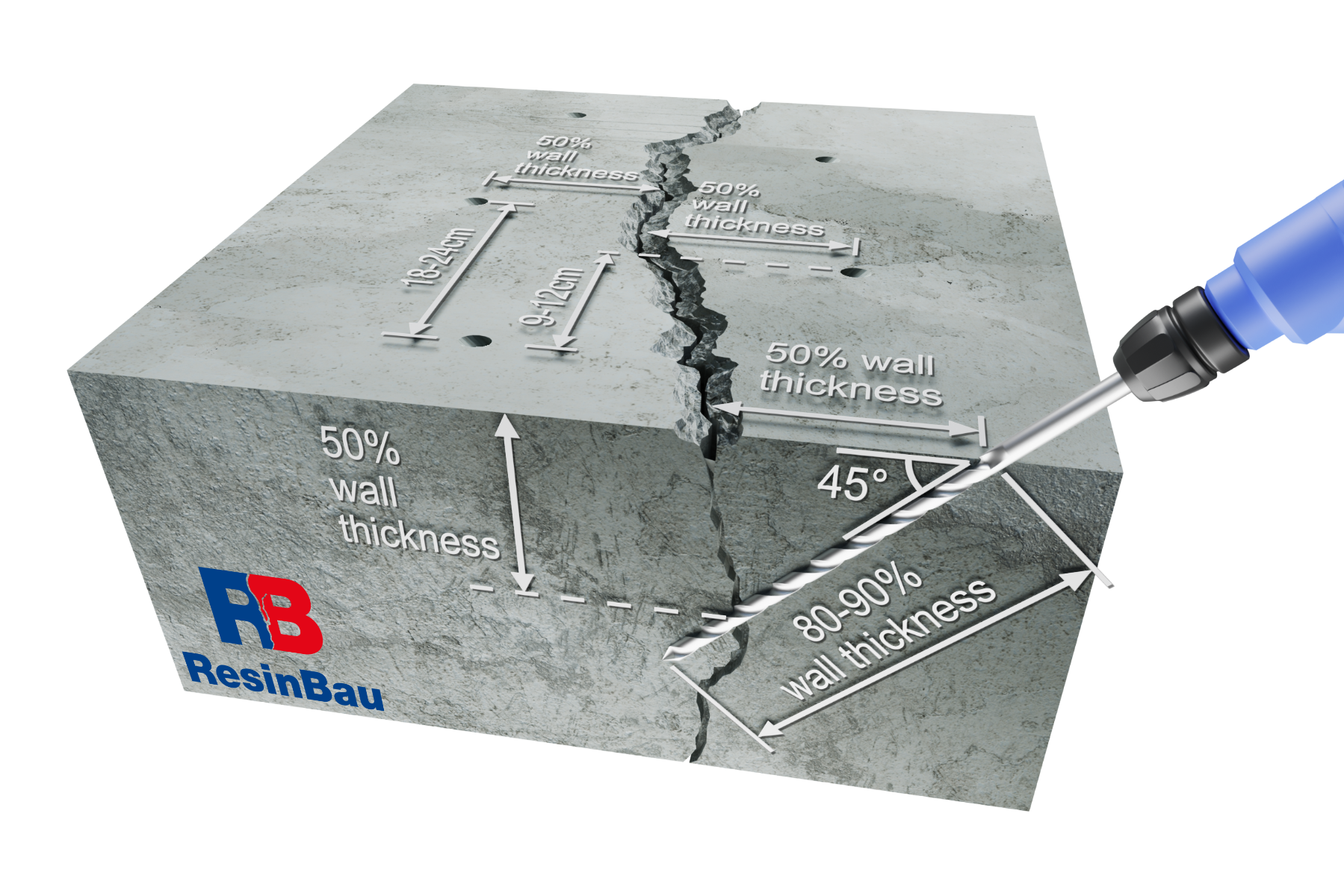

You can only see the crack from the outside, but you don’t know its course inside the structure. It may twist to one side.
Therefore, we increase the chance of hitting the light of the crack:
a) drilling alternately

b) at the right angle and distance from the crack

c) deepening the drilling from the planned intersection point

We suggest a range of 30 – 40% bore deepening

Crack cut in % of wall thickness selectable: [ 50% / 40% / 30% of the wall].
In most cases, the best point of intersection of a crack in the wall for the constitution will be 50% of its thickness (half). Such an intersection gives an even spread in both directions of the crack.
To meet the needs of our customers, who suggested that the calculators give the option of cutting the wall at 30% and 40% these values are also selectable (and in some cases are more desirable than drilling at 50% thickness).

Distance from the crack [cm].
so far away from the crack and to start drilling

Drilling angle [°].

At this angle, start drilling

Drilling depth [cm].
drill this depth
*this information will come in handy if you will be using the INSULATION PROGRESS.

Resin consumption per hole fill [ml].
Informative, how much resin you will use to just fill the well

FOR MORE INFORMATION ON CORRECT DRILLING SEE INSTRUCTIONS: CORRECT DRILLING AND INJECTING FIGURE.
IF YOU ARE FACING THE DRILLING OF A WORKING JOINT GET TO KNOW ANOTHER CALCULATOR: DRILLING A JOINT
Correct Injection Drilling
Crack Injection

These calculations are in accordance with the current state of our knowledge and experience. The calculations, information and explanations contained herein are non-binding. Since we are not aware of the exact technical conditions of a particular object, the data and information contained herein do not relieve the user of the product from carrying out his own research and tests on the execution of work under specific conditions. Thus, the data contained in the calculations do not constitute a guarantee for a specific purpose. Compliance with the regulations and application requirements is the responsibility of the user.
