Products

Materials selected
for the repair objective.

Compare application, delivery method and material behaviour. Open the product page to check selection conditions and documentation.

The product system and number of pump feed lines are different pieces of information. For materials delivered in two ways, check the application option on the product page.

16 products

Polyurethane

HydroGum

Flexible sealing of damp cracks and joints; the reaction requires water.

flexible sealing · leak reduction · construction joint sealing · sewer joint sealing · expansion joint sealing · penetration sealing · barrier against capillary rising damp · structural sealing injection · sealing through injection hoses · curtain injection · water barrier in soil

System
Single-component resin; in the 2K option the second line supplies water
Delivery
1K pump or 2K pump with a separate water line
Selection conditions

Water: Requires contact with water; a dry crack requires planned water delivery.

Material behaviour: Specimen elongation of 33.3% is not a permissible expansion joint movement.

Application, parameters and documents →

Polyurethane

EasyInject

Water-reactive 1K PU resin; stand-alone sealing effectiveness depends on filling and confined expansion.

conditional sealing · leak reduction · gap filling · barrier against capillary rising damp · structural sealing injection · sealing through injection hoses

System
Single-component resin ready for delivery
Delivery
1K pump
Selection conditions

Water: Requires contact with water; water used in a test is not a tank preparation recipe.

Material behaviour: Joint movement requires assessment; no automatic suitability declaration for expansion joints.

Application, parameters and documents →

Polyurethane

CrackFlex

Flexible sealing of dry, damp and wet cracks; reaction between two PU components.

flexible sealing · sealing through injection hoses · barrier against capillary rising damp · structural sealing injection · construction joint sealing · penetration sealing

System
Two components A + B
Delivery
1K pump after mixing, or 2K pump
Selection conditions

Water: The A + B reaction does not require water; slight foaming is possible in its presence. Assess active inflow separately.

Material behaviour: Flexible sealing; the movement range requires selection.

Application, parameters and documents →

Polyurethane

WaterStopper

Rapid reduction of active water inflow; PU resin with adjustable initiator dosing.

stopping active leakage · gap filling

System
Single-component resin + required initiator
Delivery
1K pump after mixing resin with initiator
Selection conditions

Water: Requires water; active flow and hydrostatic pressure are selection criteria.

Material behaviour: Semi-rigid foam; no assigned permissible joint movement.

Application, parameters and documents →

Acrylic

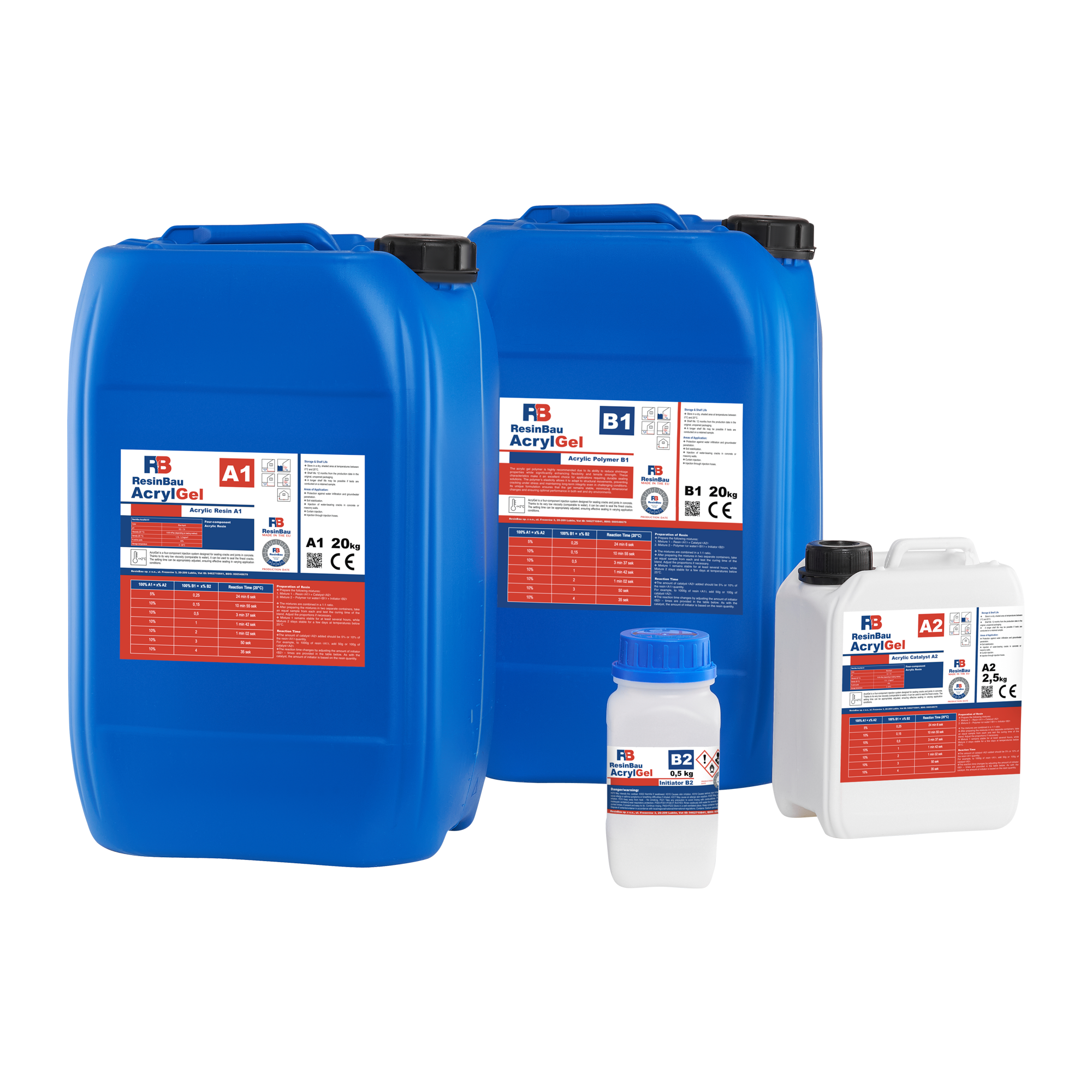

AcrylGel

Gel for flexible crack sealing and curtain injection; the Polymer option also covers expansion joints, interfaces and injection hoses.

flexible sealing · curtain injection · sealing through injection hoses · barrier against capillary rising damp · structural sealing injection · ground stabilisation · construction joint sealing · penetration sealing · expansion joint sealing · water barrier in soil

System
A1 + A2 and B1 + B2; B1 = specified Polymer or water
Delivery
Stainless steel 2K pump (standard); 1K option with extended reaction time and separate selection
Selection conditions

Water: Water or Polymer option; account for hydration, drying and washout after curing.

Material behaviour: Flexible gel; movement capacity must be selected for the joint and does not follow from specimen elongation.

Application, parameters and documents →

Epoxy

EpoxPower

Rigid crack filling and strengthening repairs after assessing the crack cause and activity.

rigid filling · strengthening repair · rigid sealing

System
Two components A + B
Delivery
1K pump after thoroughly mixing A and B
Selection conditions

Water: Dry cracks; moisture tolerance does not mean application in active flow.

Material behaviour: Rigid filling; do not extend selection to a moving expansion joint.

Application, parameters and documents →

Polyurethane

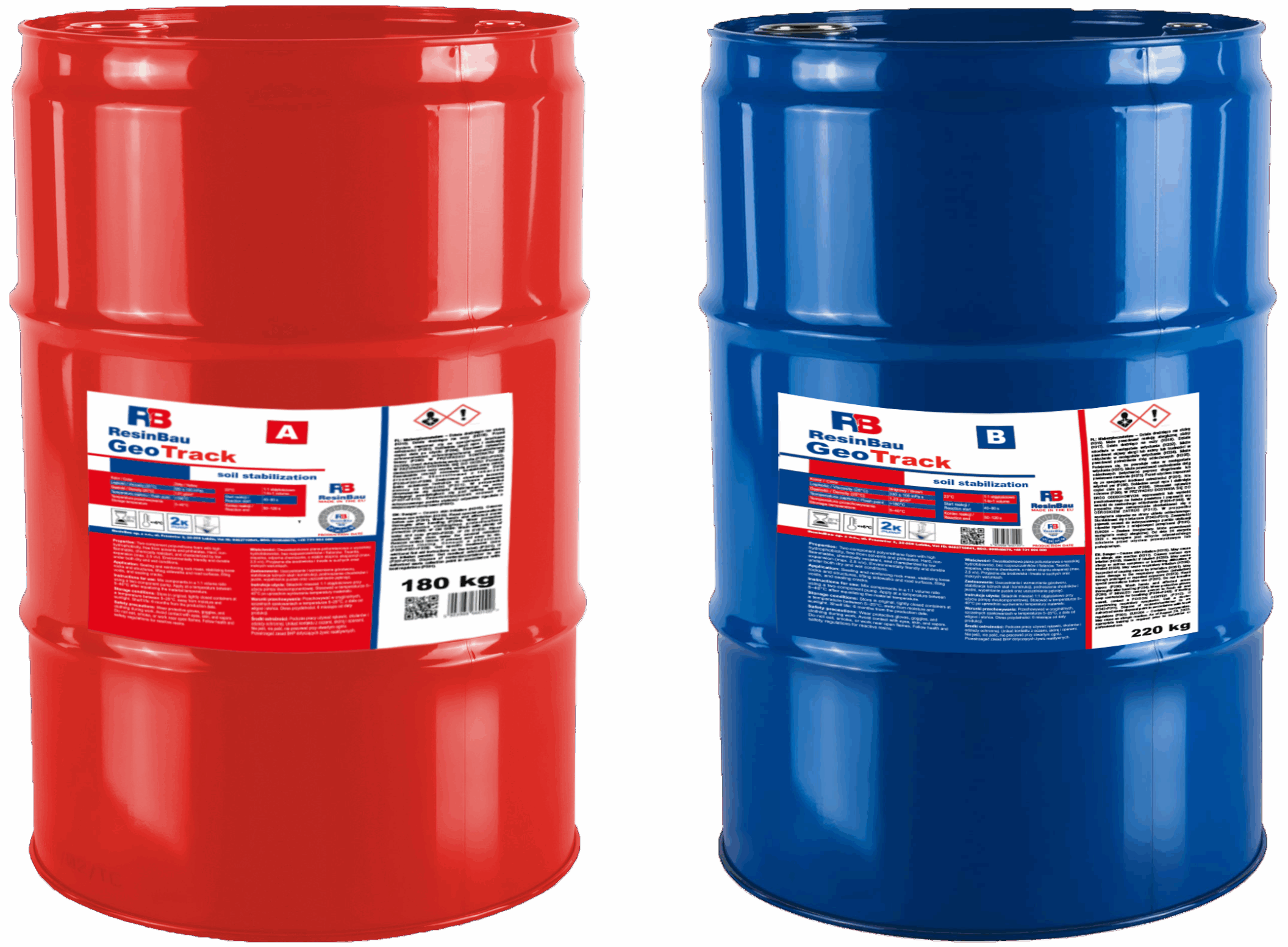

GeoTrack

Ballast bonding and consolidation of non-cohesive soils; reaction behaviour depends on the presence of water.

ballast bonding · soil consolidation · void filling

System
Two components A + B
Delivery
2K pump, 1:1 by volume; pouring/spray lance or injection system
Selection conditions

Water: Dry: no foaming. Wet: faster curing and expansion.

Material behaviour: Rigid grain bonding; not flexible joint sealing.

Application, parameters and documents →

Polyurethane

GeoPolymer.350

Strengthening and filling of soil and rock masses; controlled lifting according to the selected method.

ground stabilisation · void filling · controlled lifting · rock mass strengthening · fractured rock sealing

System
Two components A + B
Delivery
2K pump, A : B ratio = 1 : 1 by volume
Selection conditions

Water: The TDS covers dry and wet zones; the influence of water requires a trial.

Material behaviour: Lifting movement is monitored by measurement; there is no universal lift height.

Application, parameters and documents →

Polyurethane

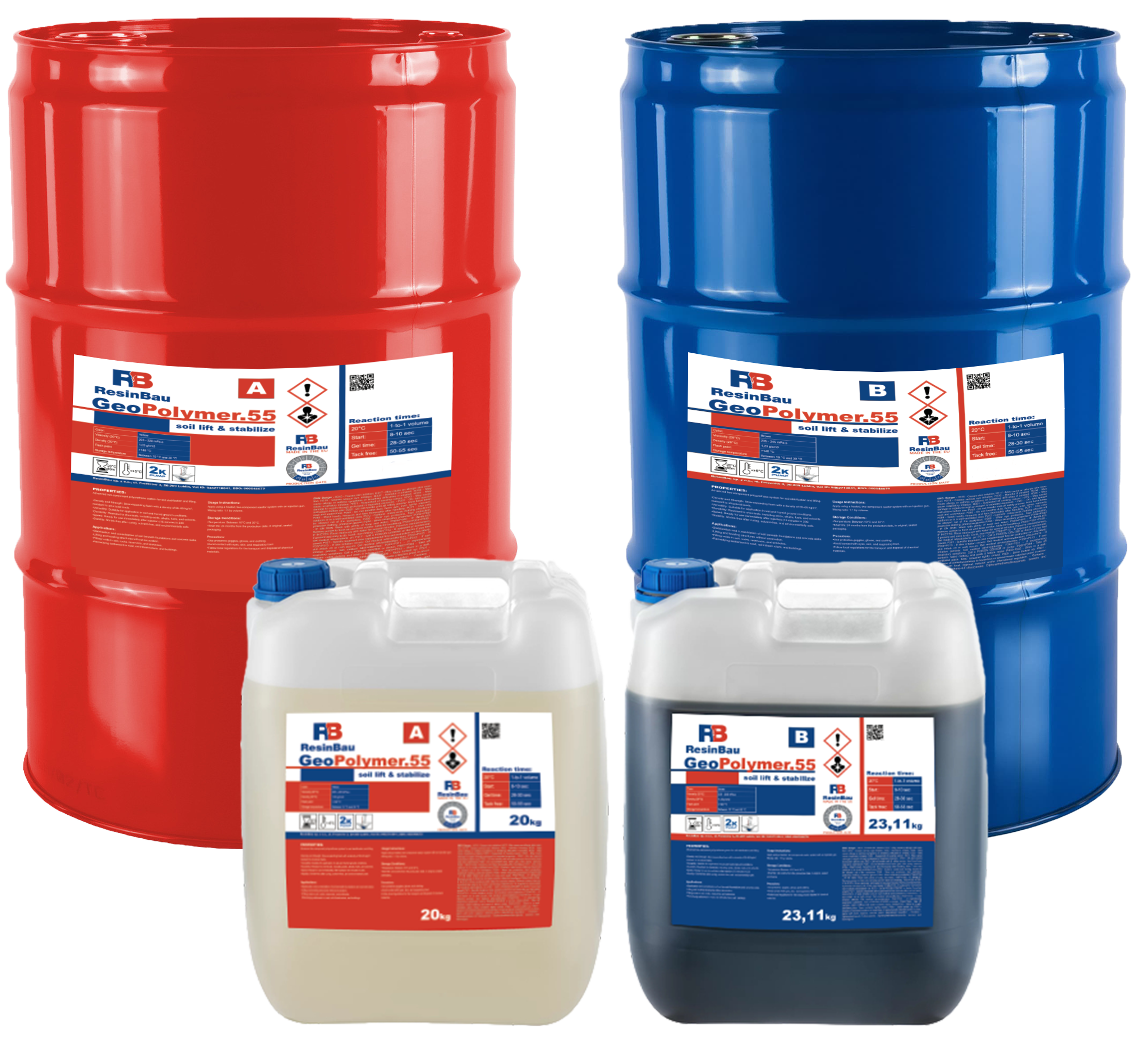

GeoPolymer.55

PU foam for void filling, stabilisation and controlled structural lifting.

ground stabilisation · void filling · controlled lifting · sewer joint sealing · water barrier in soil

System
Two components A + B
Delivery
2K pump, A : B ratio = 1 : 1 by volume
Selection conditions

Water: A + B reaction; verify water effects and actual foam structure in a trial.

Material behaviour: Lifting only with movement monitoring; not a flexible expansion joint filling.

Application, parameters and documents →

Polyurethane

SoilConsolid

Consolidation and water barriers in soil; the reaction requires water and CAT additive.

soil consolidation · water barrier in soil

System
Single-component resin + SoilConsolid CAT catalyst
Delivery
1K pump after mixing resin with catalyst
Selection conditions

Water: Requires contact with water or moisture; temperature and water quantity affect the reaction.

Material behaviour: Cured filling for consolidation; do not assign expansion-joint flexibility.

Application, parameters and documents →

Polyurethane-polyurea-silicate

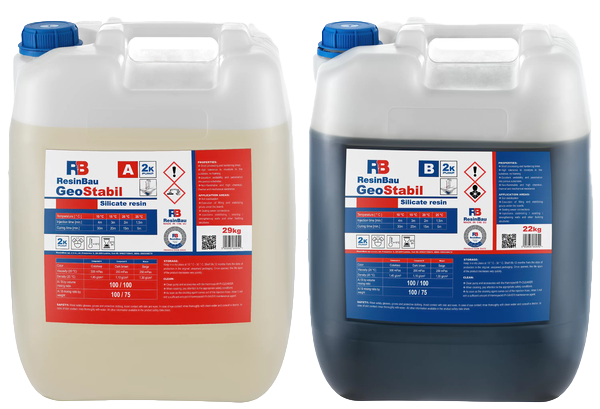

GeoStabil

Semi-rigid filling and stabilisation beneath slabs and in soil; no foaming in the presence of moisture.

ground stabilisation · filling beneath slabs · strengthening repair · sewer joint sealing

System
Two components A + B
Delivery
2K pump; two material lines A and B, with a mixing head suited to the short reaction time
Selection conditions

Water: Tolerates moisture; no foaming according to the TDS.

Material behaviour: Semi-rigid material; joint movement and loading require separate assessment.

Application, parameters and documents →

Mineral cement-based

AnkerBau

Mortar for installing helical bars in a designed masonry repair system.

helical bar installation · masonry repair with a design

System
Single-component dry mortar + water
Delivery
Mortar pump or manual application
Selection conditions

Water: Dampened substrate without excess water; measured mixing water.

Material behaviour: A strengthening system designed to transfer forces; not an expansion joint filling.

Application, parameters and documents →

Cement-based

InjectGrout 4035

Mineral void filling, including underwater where flow is controlled.

mineral void filling · anchoring · underwater filling without flow · pipe stabilisation

System
Single-component dry mortar + measured mixing water
Delivery
Injection mortar pump; manual, mechanical or gravity application possible
Selection conditions

Water: Water-filled voids permitted; no flow during application and for 12 h afterwards, depending on temperature.

Material behaviour: Rigid filling; not intended to accommodate expansion joint movement.

Application, parameters and documents →

Cement-based

LeakFix

Manual plugging of local leaks with cement that sets on contact with water.

manual plugging of a local leak

System
Dry cement for direct application to a damp area
Delivery
Manual application; the product is not delivered by injection pump
Selection conditions

Water: Contact with water triggers setting; the product is used in a damp zone.

Material behaviour: Rigid local closure; not flexible joint sealing.

Application, parameters and documents →

Mineral cement-based

CrackOn.5

Rapid-setting mortar for sealing crack faces and holes and locally plugging seepage.

crack face sealing · local seepage plugging · hole closure · rapid fixing of steel elements in concrete

System
Dry mortar + mixing water
Delivery
Manual application; brief mixing and direct pressing into the substrate
Selection conditions

Water: Damp substrate and local seepage; measured mixing water quantity.

Material behaviour: Rigid mortar; does not replace flexible expansion joint sealing.

Application, parameters and documents →

Silane-siloxane

InjectCream

Horizontal barrier limiting capillary rising damp in masonry; water under pressure is outside its scope.

barrier against capillary rising damp

System
Ready-to-use cream, without component mixing
Delivery
Manual or pneumatic cream pump with a tube reaching the bottom of the hole
Selection conditions

Water: Damp masonry with capillary rising damp; not protection against water under pressure.

Material behaviour: Not a filling material for a moving joint.

Application, parameters and documents →

TECHNOLOGY SELECTION

Need a selection for a specific task?

Prepare a structural cross-section, repair objective, information about water and anticipated movements.

Discuss your project / technical selection ↗
